Fuel Pumps

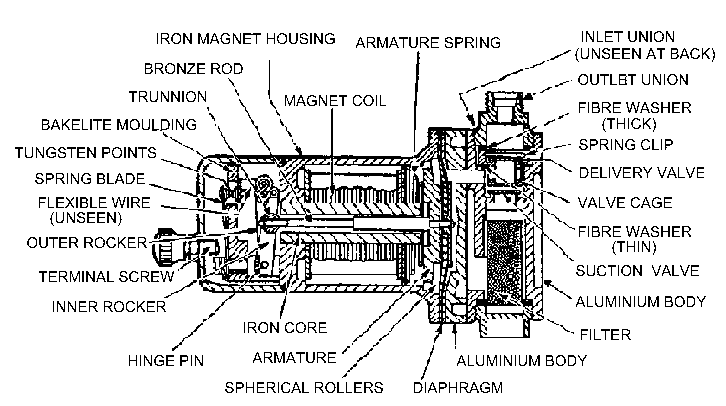

Fuel Pump cross section

Sectional view of L-type pump

New S.U pumps are available as well as repair kits. These kits contain (depending on type of pump) diaphragm & spindle assembly, contact blades, rocker mechanism, condenser, armature spring, centering plates, valves, filters, washers, gaskets and full instructions. There are many variations within each pump type ie length of coil tower, polarity, pressure, points, unions etc so contact us if you need any help with your pump.

We also carry a range of solid state FACET & HUCO electric pumps

Types of pumps

LCS
LP HP AUF 200
AZX 1300 HP Dual AZX 1400 AZX 1500

PumpEarly square based pump used between 1948 & 1963 fitted to the Jaguar XK range. There were two types, an early one with a long coil tower(3ins) and the later shorter coil tower (2.375ins). These pumps are mounted at the rear of the car.

Performance Repair Kit
Min output = 12.5 gal/hr EPK 805(long)
Max suction lift = 30ins EPK 800(short)
Max output lift =48ins Spares List

pumpLP (lower pressure) pumps were fitted to Jaguar's, Lea Francis, MG range, Morris's, Riley's, Singer's and Wolseley's between 1930 and 1955. The Morris Minor continued to use one up until production stopped in 1971. These pumps are mounted near the engine at carburettor level. Both 12volt (AUA25 & 66) and 6volt (AUA 26) are available.

Performance Repair Kits
Min output = 8 gal/hr EPK 700(pre 85)
Max suction lift= 30ins EPK 705(after 85)
Max output lift = 6ins Spares List

pumpHP (high pressure) pumps were fitted to MG range (MGA, ZA, ZB & TF) Morris Oxford, Rover P4 series(60, 75, 90, 105, 105R, 110) and Wolseley's between 1954 and 1960. They come in both positive and negative polarity applications and are fitted at the rear of the car. These pumps have been replaced by AZX 1331- & AZX 1332+.

Performance Repair Kits
Min output = 7 gal/hr EPK 600(negative earth)
Max suction lift = 30ins EPK 601(long coil)
Max output lift = 48ins EPK 605(positive earth)
Spares List

pumpFitted to Austin (1100, 1300, A110, A99, A55, A40 & Cambridge), Austin Healey Sprite, MG Midget (up to 69), Morris Oxford, Wolseley 6/110 and Mini's when fitted with electric pump. Fitment was at the rear of the car. This pump has been superseded to AUF 214.

Performance Repair Kit
Min output = 7 gal/hr EPK 200
Max suction lift = 18ins
Max output lift = 48ins Spares List

pumpThese superseded the LCS and AUF 300 pumps which were fitted to Austin Healey 100 & 3000, Jaguar & Daimler range between 1950-1978, MGB &C and Triumph Stag. Both positive and negative version available. Fitment was at the rear of the car.

Performance Repair Kits
Min output = 15 gal/hr EPK 300(negative earth)
Max suction lift = 18ins EPK 305(positive earth)
Max output lift = 48ins Spares List

pumpThese pumps are fitted to Aston Martin DB2- DB5 in the engine bay.(AUA 11 & AUA 161)

Perfomance Repair Kit
Min output = 16 gal/hr EPK 905
Max suction lift = 30ins
Max output lift = 48ins

pumpFitted to Rolls Royce and Jaguar at the rear of the car.

Performance Repair Kit
Min output = 30 gal/hr EPK300(negative earth) x 2
Max suction lift = 18ins EPK305(positive earth) x 2
Max output lift = 48ins

pumpFitted to Rover P5 Series 3 litre at the rear of the car.

Perfomance Repair kits
Min output = 21.5 gal/hr EPK600(negative earth) x 2
Max suction lift = 18ins EPK605(positive earth) x 2
Max output lift = 48ins
